1017533
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

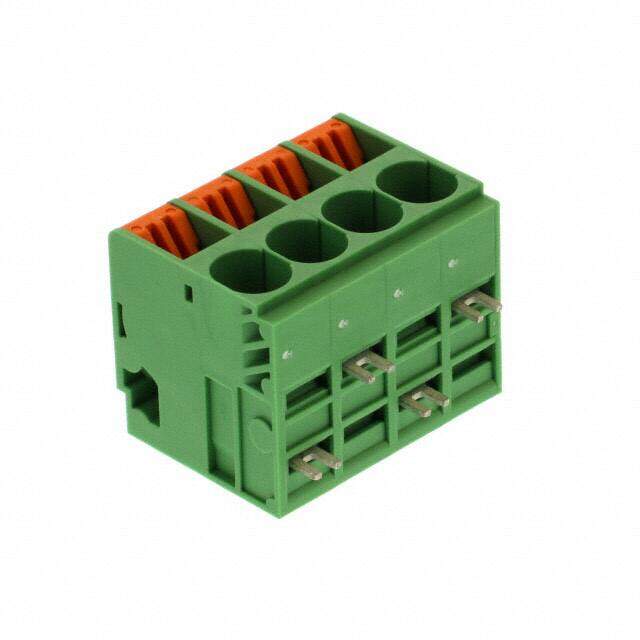

COMBICON TDPT RoHS Compliant Horizontal with Board Lever Actuated Wire Board Terminal Block -40C 58A 600V 0.400 10.16mm
PDF
/
Buying Options
Total Price: USD $8.9
Unit Price: USD $8.8968
≥1 USD $8.8968
≥10 USD $8.65216
≥100 USD $8.08632
≥500 USD $7.439432
≥1000 USD $6.873363
≥3000 USD $6.549946
Inventory: 212
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Wire Termination Screwless - Leg Spring, Push-In Spring
Mating Orientation Horizontal with Board
Positions Per Level 4
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Current 58A
Number of Levels 1
Voltage 600V
Wire Gauge 6-20 AWG
Pitch 0.400 10.16mm
Color Green
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Lever Actuated
Series COMBICON TDPT
Packaging Bulk
Operating Temperature -40°C
Physical
Contact Material - Plating Tin
Mounting Type Through Hole
Supply Chain
Factory Lead Time 4 Weeks
