14011013102000

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board

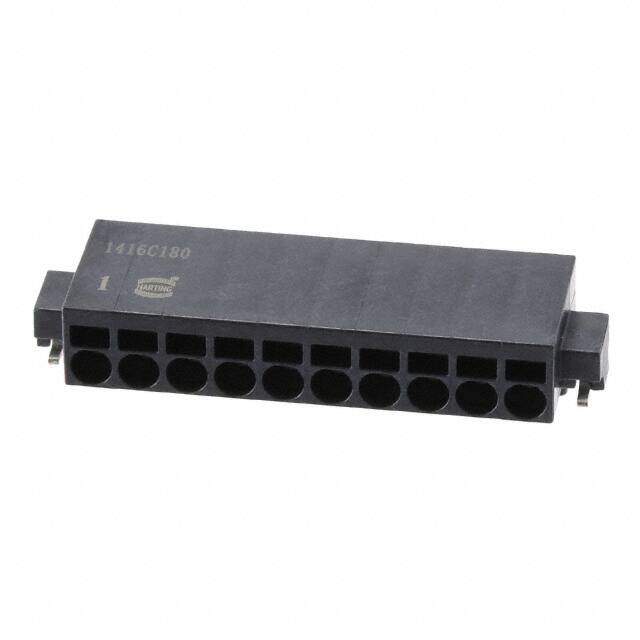

Description HARTING 14011013102000RECEPTACLE, 10WAY, 1ROW, 2.54MM, HAR-FLEXICON
PDF
/
Buying Options
Total Price: USD $3.04
Unit Price: USD $3.036
≥1 USD $3.036
≥10 USD $2.7544
≥100 USD $2.4266
Inventory: 428
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Width 9.2mm
Length 30.09mm

Technical

Number of Positions Per Level 10
Wire Termination Screwless - Spring Cage, Tension Clamp
Mating Orientation Horizontal with Board
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 26 AWG
Current 6A
Number of Levels 1
Wire Gauge 20-26 AWG
Current Rating 8.4A
Depth 5mm
Orientation Horizontal
Pitch 0.100 2.54mm
Voltage - Rated 160V
Gender Receptacle
Number of Rows 2
Color Black
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Solder Retention
Series har-flexicon?
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C

Physical

Contact Material - Plating Copper Alloy - Tin Plated
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Material Glass fibre, Polymer
Mounting Type Surface Mount
Mount Panel, Surface Mount
Contact Plating Tin
Contact Material Copper

Supply Chain

Factory Lead Time 9 Weeks
