14010613102000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

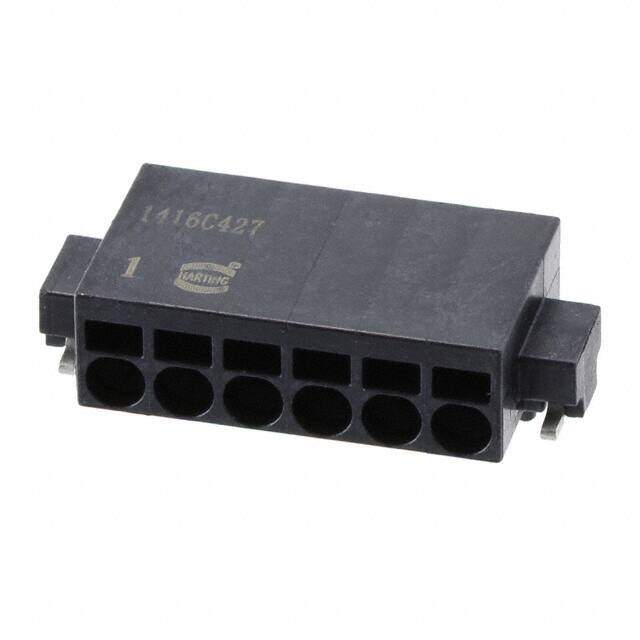

HARTING 14010613102000RECEPTACLE, 6WAY, 1ROW, 2.54MM, HAR-FLEXICON
PDF
/
Buying Options
Total Price: USD $1.48
Unit Price: USD $1.4784
≥1 USD $1.4784
≥10 USD $1.2892
≥100 USD $1.15192
Inventory: 870
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper
Contact Plating Tin
Mount Panel, Surface Mount
Mounting Type Surface Mount
Material Glass fibre, Polymer
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Material - Plating Copper Alloy - Tin Plated
Technical
Operating Temperature -40°C~125°C
Packaging Cut Tape (CT)
Series har-flexicon?
Feature Board Guide, Solder Retention
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Color Black
Number of Rows 2
Gender Receptacle
Voltage - Rated 160V
Additional Feature STANDARD: UL 94V-0, LCP
Pitch 0.100 2.54mm
Orientation Horizontal
Depth 5mm
Current Rating 8.4A
Wire Gauge 20-26 AWG
Number of Levels 1
Current 6A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 20 AWG
Number of Poles 6
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Ways 6
Safety Approval CSA; UL
Mating Orientation Horizontal with Board
Wire Termination Screwless - Spring Cage, Tension Clamp
Fastening Method SPRING LOADED
Dimensions
Length 19.93mm
Width 9.2mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
