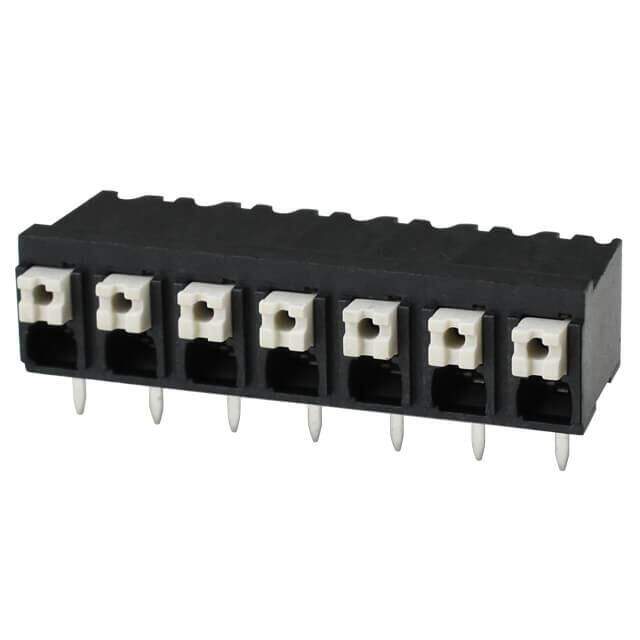

TBLH10-500-07BK
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
TERMINAL BLOCK, SCREWLESS, HIGH
PDF
/
Buying Options
Total Price: USD $2.61
Unit Price: USD $2.6136
≥1 USD $2.6136
≥10 USD $1.97648
≥100 USD $1.831808
≥500 USD $1.64714
≥1000 USD $1.606994
≥3000 USD $1.406082
Inventory: 578
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Contact Material - Plating Copper Alloy - Tin Plated
Technical
Operating Temperature -40°C~130°C
Packaging Tray
Series TBLH10-500
Feature Push Button Actuated
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Color Black
Pitch 0.197 5.00mm
Wire Gauge 16-24 AWG
Voltage 300V
Number of Levels 1
Current 10A
Positions Per Level 7
Mating Orientation Horizontal with Board
Wire Termination Screwless - Push Button Clamp
Compliance
RoHS Status RoHS Compliant
