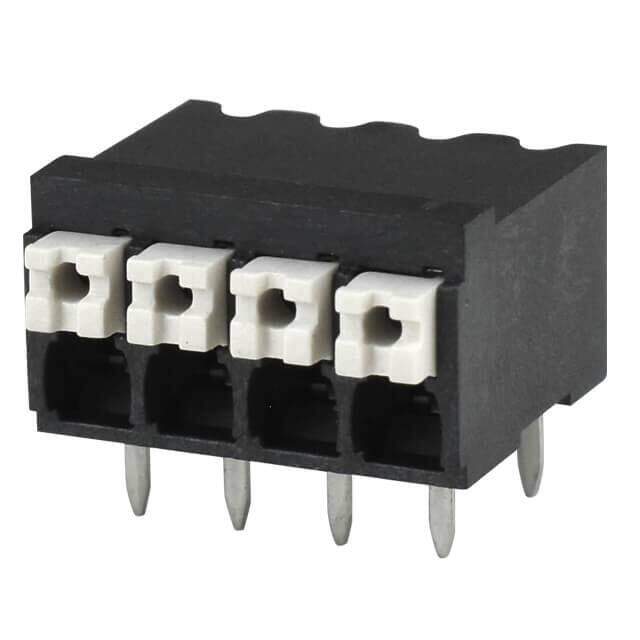

TBLH10-350-04BK
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
TERMINAL BLOCK, SCREWLESS, HIGH
PDF
/
Buying Options
Total Price: USD $1.3
Unit Price: USD $1.3024
≥1 USD $1.3024
≥10 USD $0.91344
≥100 USD $0.85184
≥500 USD $0.77308
≥1000 USD $0.769674
≥3000 USD $0.649942
Inventory: 659
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Contact Material - Plating Copper Alloy - Tin Plated
Technical
Operating Temperature -40°C~130°C
Packaging Tray
Series TBLH10-350
Feature Push Button Actuated
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Color Black
Pitch 0.138 3.50mm
Wire Gauge 16-24 AWG
Voltage 300V
Number of Levels 1
Current 10A
Positions Per Level 4
Mating Orientation Horizontal with Board
Wire Termination Screwless - Push Button Clamp
Compliance
RoHS Status RoHS Compliant
