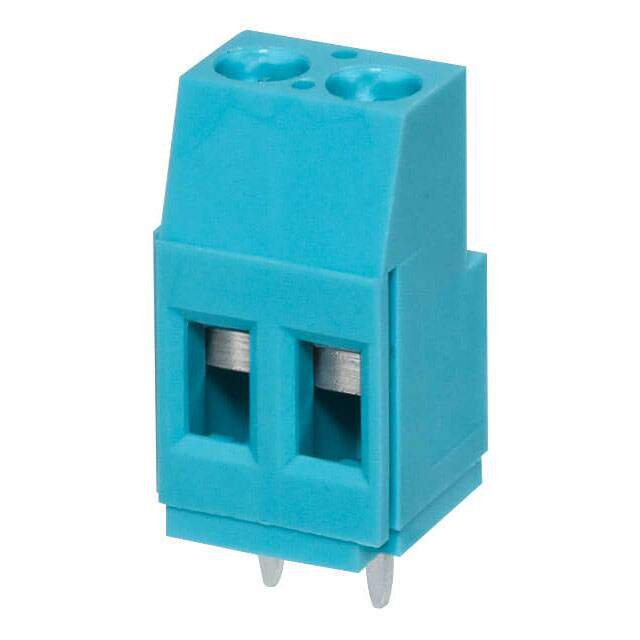

TB009-508-02BE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
TERMINAL BLOCK, SCREW TYPE, 5.08
PDF
/
Buying Options
Total Price: USD $0.68
Unit Price: USD $0.6776
≥1 USD $0.6776
≥10 USD $0.42152
≥100 USD $0.360448
≥500 USD $0.324192
≥1000 USD $0.317328
≥3000 USD $0.27009
Inventory: 1810
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Through Hole
Housing Material Polyamide (PA66), Nylon 6/6
Contact Material - Plating Copper Alloy - Tin Plated
Clamp Material - Plating Copper Alloy - Nickel Plated
Screw Material - Plating Steel - Zinc Plated
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series TB009-508
Feature Interlocking (Side)
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Color Blue
Pitch 0.200 5.08mm
Wire Gauge 12-26 AWG
Voltage 300V
Number of Levels 1
Current 20A
Torque - Screw 0.5 Nm (4.4 Lb-In)
Positions Per Level 2
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M3
Compliance
RoHS Status RoHS Compliant
