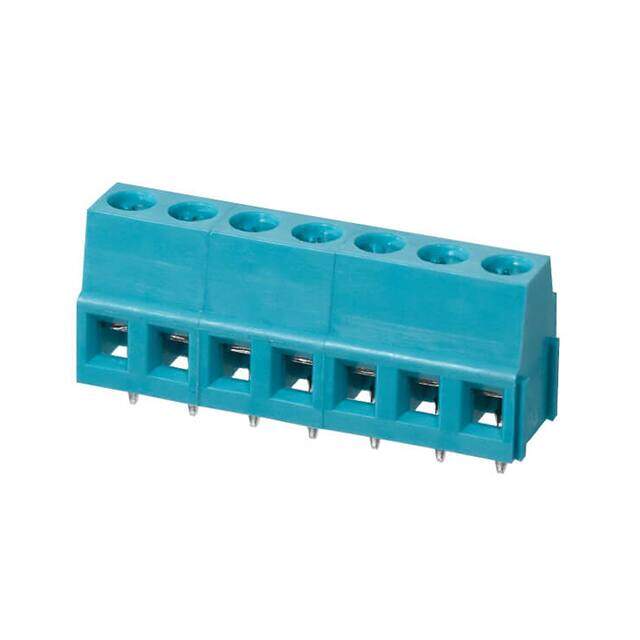

TB007-508-07BE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
TERMINAL BLOCK, SCREW TYPE, 5.08
PDF
/
Buying Options
Total Price: USD $1.28
Unit Price: USD $1.2848
≥1 USD $1.2848
≥10 USD $0.90552
≥100 USD $0.844096
≥500 USD $0.766304
≥1000 USD $0.762872
≥3000 USD $0.644195
Inventory: 592
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Screw Thread M3
Wire Termination Screw - Rising Cage Clamp
Mating Orientation Horizontal with Board
Positions Per Level 7
Torque - Screw 0.5 Nm (4.4 Lb-In)
Current 16A
Number of Levels 1
Voltage 300V
Wire Gauge 12-24 AWG
Pitch 0.200 5.08mm
Color Blue
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Interlocking (Side)
Series TB007-508
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Screw Material - Plating Steel - Zinc Plated
Clamp Material - Plating Copper Alloy - Nickel Plated
Contact Material - Plating Copper Alloy - Tin Plated
Housing Material Polyamide (PA66), Nylon 6/6
Mounting Type Through Hole
Supply Chain
Factory Lead Time 12 Weeks
