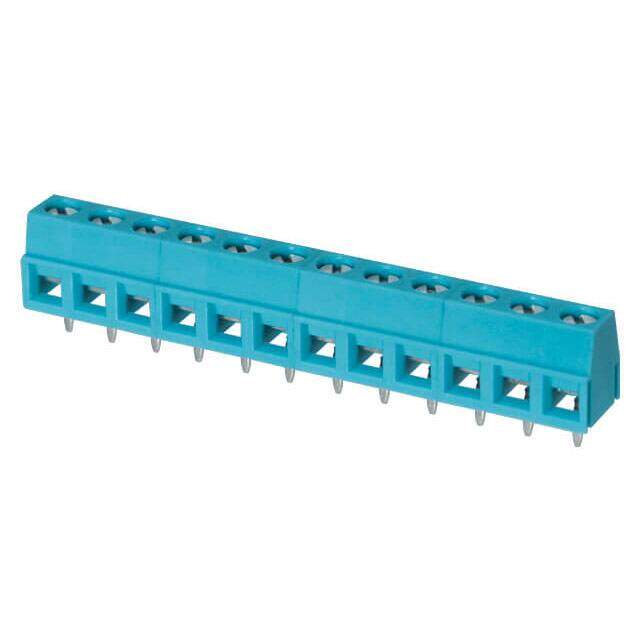

TB006-508-12BE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
TB006-508 M3 RoHS Compliant Horizontal with Board Wire Board Terminal Block -40C~105C 12A 300V 0.200 5.08mm
PDF
/
Buying Options
Total Price: USD $1.99
Unit Price: USD $1.9888
≥1 USD $1.9888
≥10 USD $1.50832
≥100 USD $1.397792
≥500 USD $1.25664
≥1000 USD $1.226016
≥3000 USD $1.072755
Inventory: 576
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Screw Thread M3
Wire Termination Screw - Rising Cage Clamp
Mating Orientation Horizontal with Board
Positions Per Level 12
Torque - Screw 0.5 Nm (4.4 Lb-In)
Current 12A
Number of Levels 1
Voltage 300V
Wire Gauge 14-26 AWG
Pitch 0.200 5.08mm
Color Blue
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Interlocking (Side)
Series TB006-508
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Screw Material - Plating Steel - Zinc Plated
Clamp Material - Plating Copper Alloy - Nickel Plated
Contact Material - Plating Copper Alloy - Tin Plated
Housing Material Polyamide (PA66), Nylon 6/6
Mounting Type Through Hole
Supply Chain
Factory Lead Time 12 Weeks
