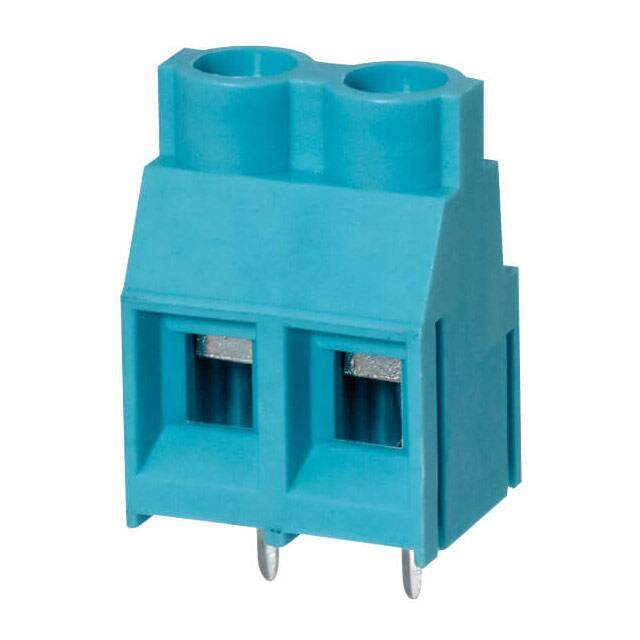

TB005-762-02BE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
TB005-762 M3 RoHS Compliant Horizontal with Board Wire Board Terminal Block -40C~105C 30A 300V 0.300 7.62mm
PDF
/
Buying Options
Total Price: USD $1.58
Unit Price: USD $1.576035
≥1 USD $1.576035
≥10 USD $1.486831
≥100 USD $1.402665
≥500 USD $1.323269
≥1000 USD $1.248363
Inventory: 3344
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Through Hole
Housing Material Polyamide (PA66), Nylon 6/6
Contact Material - Plating Copper Alloy - Tin Plated
Clamp Material - Plating Copper Alloy - Nickel Plated
Screw Material - Plating Steel - Zinc Plated
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series TB005-762
Feature Interlocking (Side)
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Color Blue
Pitch 0.300 7.62mm
Wire Gauge 10-26 AWG
Voltage 300V
Number of Levels 1
Current 30A
Torque - Screw 0.5 Nm (4.4 Lb-In)
Positions Per Level 2
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M3
Compliance
RoHS Status RoHS Compliant
