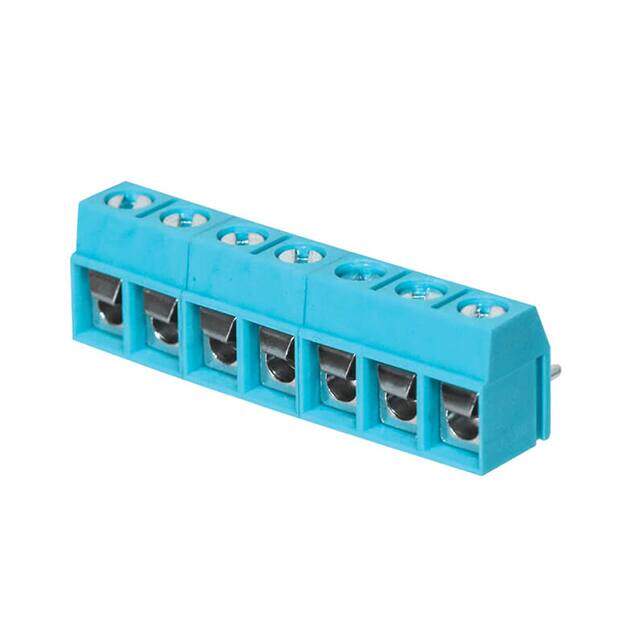

TB002V-500-07BE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
TB002V-500 M2.5 RoHS Compliant Vertical with Board Wire Board Terminal Block -40C~105C 15A 300V 0.197 5.00mm
PDF
/
Buying Options
Total Price: USD $1.5
Unit Price: USD $1.496
≥1 USD $1.496
≥10 USD $1.05336
≥100 USD $0.982784
≥500 USD $0.891792
≥1000 USD $0.88792
≥3000 USD $0.749795
Inventory: 2145
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Screw Thread M2.5
Wire Termination Screw - Leaf Spring, Wire Guard
Mating Orientation Vertical with Board
Positions Per Level 7
Torque - Screw 0.4 Nm (3.5 Lb-In)
Current 15A
Number of Levels 1
Voltage 300V
Wire Gauge 12-22 AWG
Pitch 0.197 5.00mm
Color Blue
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Interlocking (Side)
Series TB002V-500
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Screw Material - Plating Steel - Zinc Plated
Clamp Material - Plating Steel, Stainless
Contact Material - Plating Copper Alloy - Tin Plated
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Supply Chain
Factory Lead Time 12 Weeks
