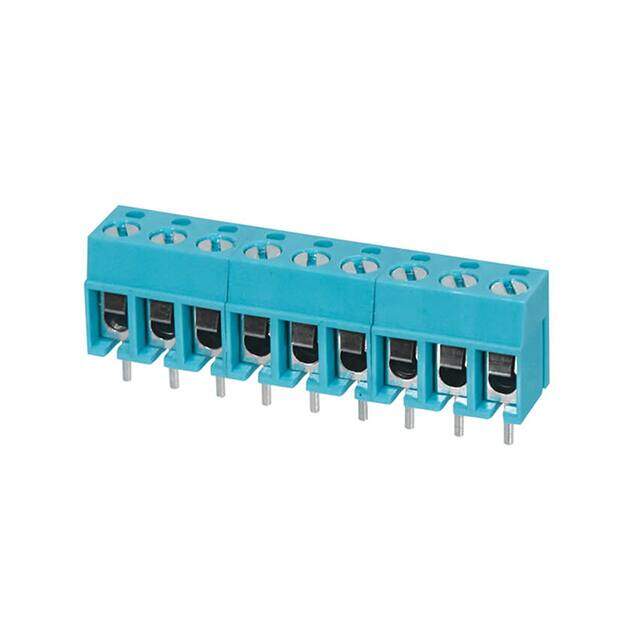

TB001-500-09BE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
TB001-500 M3 RoHS Compliant Horizontal with Board Wire Board Terminal Block -40C~105C 15A 300V 0.197 5.00mm
PDF
/
Buying Options
Total Price: USD $1.09
Unit Price: USD $1.0912
≥1 USD $1.0912
≥10 USD $0.76384
≥100 USD $0.712448
≥500 USD $0.646448
≥1000 USD $0.643632
≥3000 USD $0.543523
Inventory: 864
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Contact Material - Plating Copper Alloy - Tin Plated
Clamp Material - Plating Steel, Stainless
Screw Material - Plating Steel - Zinc Plated
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series TB001-500
Feature Interlocking (Side)
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Color Blue
Pitch 0.197 5.00mm
Wire Gauge 12-22 AWG
Voltage 300V
Number of Levels 1
Current 15A
Torque - Screw 0.5 Nm (4.4 Lb-In)
Positions Per Level 9
Mating Orientation Horizontal with Board
Wire Termination Screw - Leaf Spring, Wire Guard
Screw Thread M3
Compliance
RoHS Status RoHS Compliant
