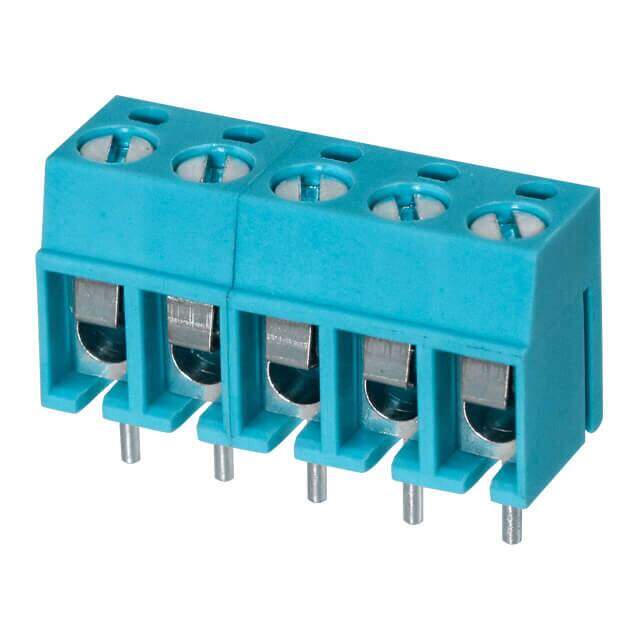

TB001-500-05BE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
TERMINAL BLOCK, SCREW TYPE, 5.00
PDF
/
Buying Options
Total Price: USD $0.84
Unit Price: USD $0.8448
≥1 USD $0.8448
≥10 USD $0.52624
≥100 USD $0.45056
≥500 USD $0.404976
≥1000 USD $0.396616
≥3000 USD $0.337533
Inventory: 101
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Contact Material - Plating Copper Alloy - Tin Plated
Clamp Material - Plating Steel, Stainless
Screw Material - Plating Steel - Zinc Plated
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series TB001-500
Feature Interlocking (Side)
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Color Blue
Pitch 0.197 5.00mm
Wire Gauge 12-22 AWG
Voltage 300V
Number of Levels 1
Current 15A
Torque - Screw 0.5 Nm (4.4 Lb-In)
Positions Per Level 5
Mating Orientation Horizontal with Board
Wire Termination Screw - Leaf Spring, Wire Guard
Screw Thread M3
Compliance
RoHS Status RoHS Compliant
