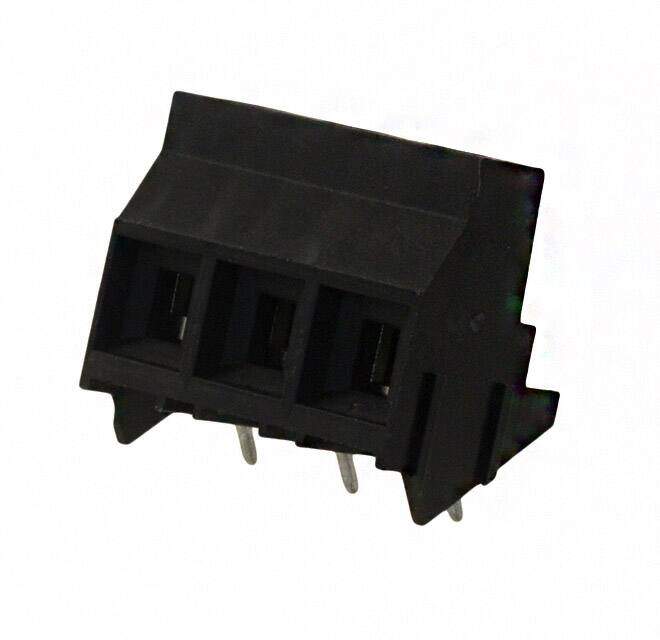

ESPM03230
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
CONN TERM BLOCK 3POS .375" ANGLE
PDF
/
Buying Options
Total Price: USD $2.23
Unit Price: USD $2.2264
≥1 USD $2.2264
≥10 USD $1.68344
≥100 USD $1.560416
≥500 USD $1.402896
≥1000 USD $1.368752
≥3000 USD $1.197645
Inventory: 343
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Technical
Wire Termination Screw - Rising Cage Clamp
Mating Orientation Angled
Safety Approval UL; VDE; CSA
Number of Ways 3
Torque - Screw 0.8 Nm (7.1 Lb-In)
Terminal and Terminal Block Type MODULAR TERMINAL BLOCK
Number of Decks 1
Wire/Cable Gauge 10 AWG
Wire Gauge (Min) 10 AWG
Wire Gauge (Max) 24 AWG
Number of Levels 1
Max Current Rating 30A
Max Supply Voltage 600V
Voltage 300V
Wire Gauge 10-24 AWG
Number of Contacts 3
Current Rating 30A
Pitch 0.375 9.53mm
Additional Feature POLYAMIDE66, CAGE CLAMP
Voltage - Rated 600V
Number of Rows 1
Color Black
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Interlocking (Side)
Series ESPM
Published 2002
Packaging Tray
Operating Temperature -40°C~110°C
Physical
Screw Material - Plating Copper Alloy - Nickel Plated
Clamp Material - Plating Copper Alloy - Nickel Plated
Contact Material - Plating Copper Alloy - Tin Plated
Housing Material Polyamide (PA66), Nylon 6/6
Material Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Nickel, Tin
Supply Chain
Factory Lead Time 8 Weeks
