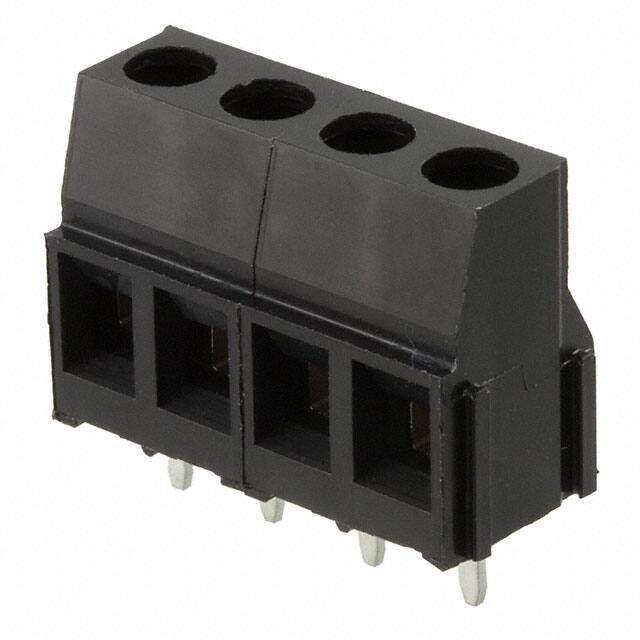

ELM041200 image
Favorite
ELM041200 image
Favorite

ELM041200

Amphenol PCD
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description TERM BLK 4P SIDE ENT 5.08MM PCB
PDF
/
Inventory: 8566
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Technical

Number of Positions Per Level 4
Wire Termination Screw - Rising Cage Clamp
Mating Orientation Horizontal with Board
Positions Per Level 4
Torque - Screw 0.79 Nm (7.0 Lb-In)
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 28 AWG
Current 10A
Number of Levels 1
Number of Circuits 4
Voltage 300V
Wire Gauge 12-28 AWG
Housing Color Black
Number of Contacts 4
Orientation Right Angle
Pitch 0.200 5.08mm
Number of Rows 1
Color Black
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Interlocking (Side)
Series ELM
Published 2006
Packaging Tray
Operating Temperature 105°C

Physical

Screw Material - Plating Copper Alloy - Nickel Plated
Clamp Material - Plating Copper Alloy - Nickel Plated
Contact Material - Plating Brass - Tin Plated
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Brass, Tin

Supply Chain

Factory Lead Time 8 Weeks
