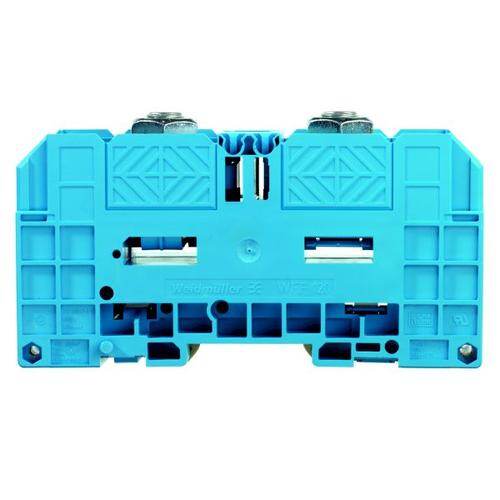

1028580000

Weidmüller
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Specialized
Description TERM BLK POST DUAL 2POS 42.0MM
PDF
/
Buying Options
Total Price: USD $23.71
Unit Price: USD $23.7072
≥1 USD $23.7072
≥10 USD $22.75768
≥100 USD $21.967264
≥500 USD $21.1772
≥1000 USD $20.545008
≥3000 USD $20.149888
Inventory: 87
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Terminal Width 42.0mm
Width 42mm
Length 5.197 132.00mm
Height 80.518mm

Technical

Wire Gauge or Range - mm2 6-150mm2
Safety Approval UL; CSA; CE
Current - UL 310A
Wire Gauge or Range - AWG 250kcmil-10 AWG
Number of Decks 1
Current 234A
Number of Levels 1
Voltage 1kV
Housing Color Blue
Number of Contacts 2
Approval Agency CE, CSA, NEMKO, UR
Termination Style Stud
Current Rating 269A
HTS Code 8536.69.40.40
Additional Feature STANDARD: UL 94V-0
Voltage - Rated 1kV
Number of Positions 2
Type Post - Dual
ECCN Code EAR99
Part Status Active
Pbfree Code yes
Series WFF
Published 2009
Operating Temperature -50°C~120°C

Physical

Material - Insulation Thermoplastic, Wemid
Weight 265.69g
Housing Material Nylon
Mounting Type DIN Rail
Mount DIN Rail

Supply Chain

Factory Lead Time 6 Weeks
