3274108
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Specialized
Description

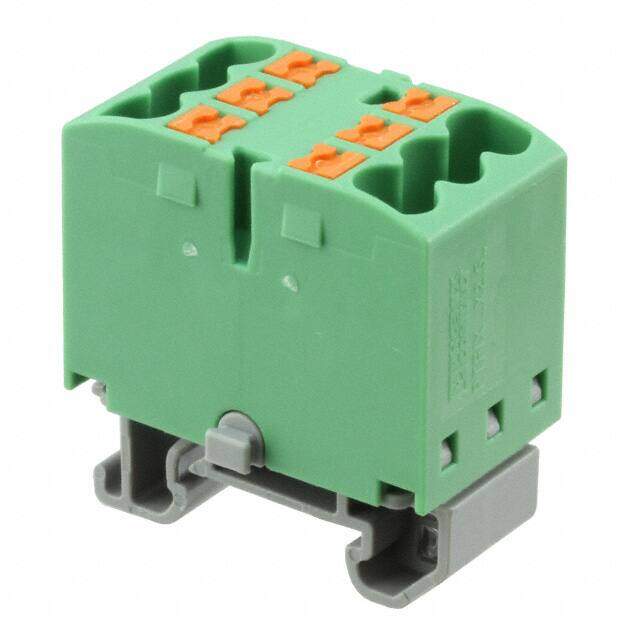

DISTRIBUTION BLOCK GREEN
PDF
/
Buying Options
Total Price: USD $1.87
Unit Price: USD $1.872263
≥1 USD $1.872263
≥10 USD $1.766287
≥100 USD $1.666304
≥500 USD $1.571992
≥1000 USD $1.483011
Inventory: 5656
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mounting Type DIN Rail
Material - Insulation Polyamide (PA), Nylon
Technical
Published 2018
Series CLIPLINE PTFIX
Feature Block of 3
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Middle
Number of Positions 6
Termination Style Push In, Spring
Housing Color Green
Number of Levels 1
Wire Gauge or Range - AWG 14-26 AWG
Voltage - IEC 500V
Wire Gauge or Range - mm2 0.14-4mm2
Current - IEC 24A
Stripping Length 10mm
Dimensions
Length 1.110 28.19mm
Height (Max) 1.299 33.00mm
Terminal Width 15.6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
