3273936
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Specialized
Description

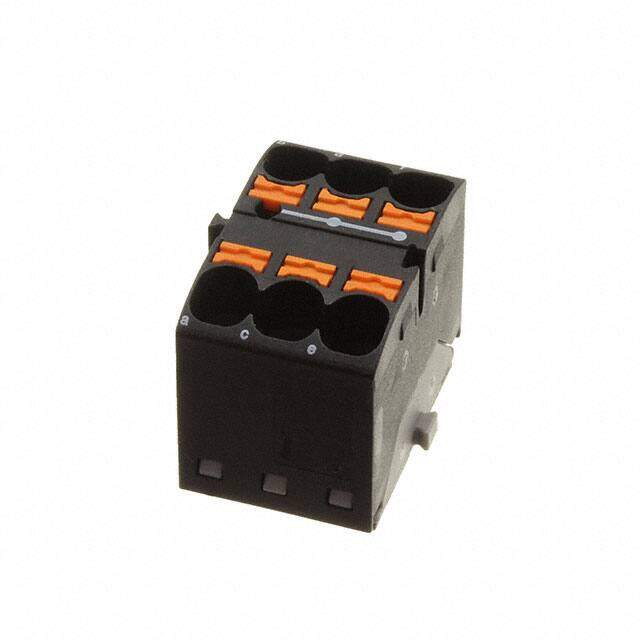

CLIPLINE PTFIX RoHS Compliant Block of 3 Polyamide (PA) Nylon Terminal Block Middle 10-24AWG -60C~130C 32A 600V
PDF
/
Buying Options
Total Price: USD $3.29
Unit Price: USD $3.2912
≥1 USD $3.2912
≥10 USD $3.07296
≥100 USD $2.827088
≥500 USD $2.612016
≥1000 USD $2.489098
≥3000 USD $2.3474
Inventory: 59
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Terminal Width 18.5mm
Height (Max) 0.894 22.70mm
Length 1.126 28.60mm
Technical
Stripping Length 10mm ~ 12mm
Current - IEC 32A
Wire Gauge or Range - mm2 0.2-6mm2
Voltage - IEC 450V
Wire Gauge or Range - AWG 10-24 AWG
Voltage - UL 600V
Number of Levels 1
Housing Color Black
Termination Style Push In, Spring
Number of Positions 6
Type Middle
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Block of 3
Series CLIPLINE PTFIX
Operating Temperature -60°C~130°C
Physical
Material - Insulation Polyamide (PA), Nylon
Mounting Type Direct Mount
Supply Chain
Factory Lead Time 6 Weeks
