RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Specialized

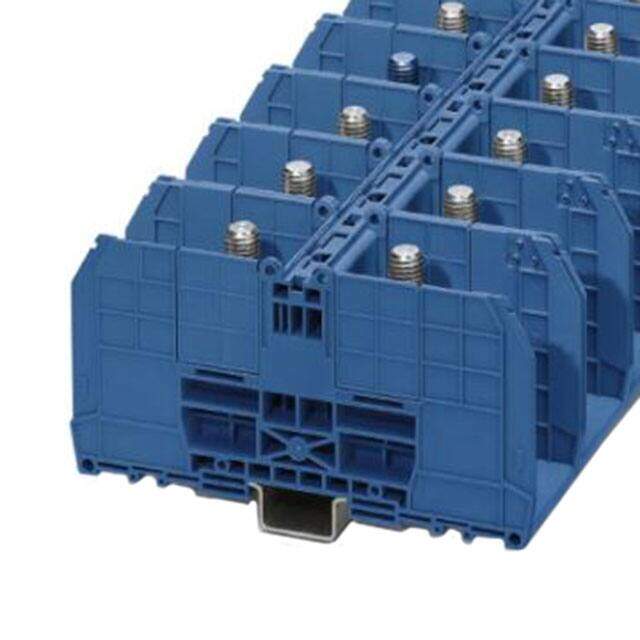

Description Phoenix Contact Non-Fused Terminal Block, RBO series , 1000 V, 415A, Bolt Termination, Blue, Single Level
PDF
/
Inventory: 8738
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Height (Max) 3.575 90.80mm
Length 6.457 164.00mm

Technical

Wire Gauge or Range - mm2 10-240mm2
Voltage - IEC 1kV
Current - UL 420A
Wire Gauge or Range - AWG 600kcmil-8 AWG
Number of Levels 1
Housing Color Blue
Termination Style Bolt and Nut
Current Rating 415A
Voltage - Rated 1kV
Number of Positions 2
Type NEMA Open Construction
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series CLIPLINE RBO
Published 2015

Physical

Material - Insulation Polyamide (PA), Nylon
Mounting Type DIN Rail

Supply Chain

Factory Lead Time 4 Weeks
