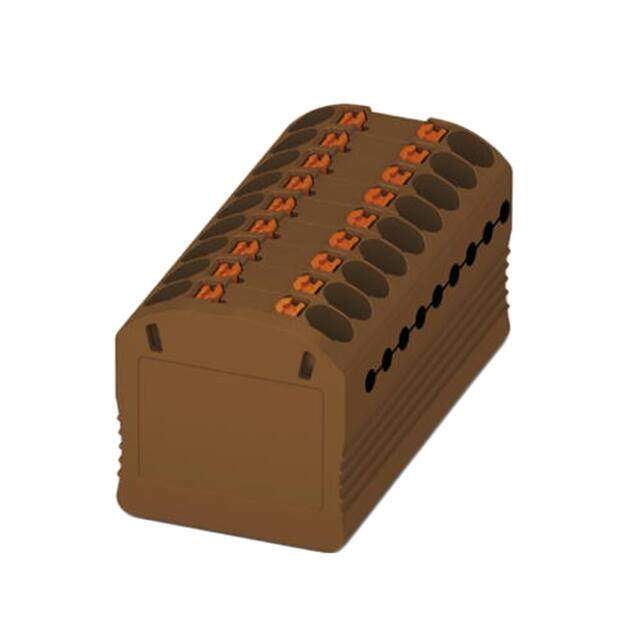

3002777 image
Favorite
3002777 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Specialized
Description DISTRIBUTION BLOCK BROWN
PDF
/
Buying Options
Total Price: USD $3.63
Unit Price: USD $3.6256
≥1 USD $3.6256
≥10 USD $3.5684
Inventory: 31
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Terminal Width 37.4mm
Height (Max) 0.697 17.70mm
Length 0.850 21.60mm

Technical

Stripping Length 10mm
Current - IEC 17.5A
Wire Gauge or Range - mm2 0.14-1.5mm2
Voltage - IEC 450V
Current - UL 15A
Wire Gauge or Range - AWG 14-26 AWG
Voltage - UL 300V
Number of Levels 1
Housing Color Brown
Termination Style Push In, Spring
Number of Positions 18
Type Middle
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Block of 3
Series CLIPLINE PTFIX
Published 2017
Operating Temperature -60°C~130°C

Physical

Material - Insulation Polyamide (PA), Nylon
Mounting Type Direct Mount

Supply Chain

Factory Lead Time 6 Weeks
