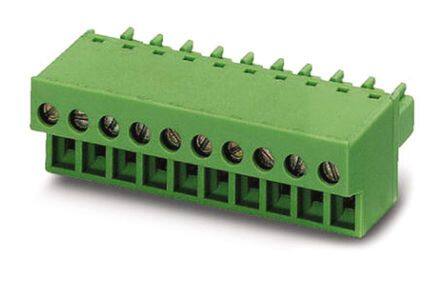

1833933
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Specialized
Description
Pluggable Terminal Blocks UMSTBVK 2.5/14-ST- 5.08
PDF
/
Inventory: 923
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Terminal Width 42.5mm
Length 2.860 72.64mm
Height 43.5102mm
Technical
Wire Cross Section 2.5 mm2
Stripping Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Safety Approval UL
Number of Ways 14
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 30 AWG
Current 10A
Number of Levels 1
Voltage 300V
Housing Color Green
Termination Style Plug Receptacles, Screw
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Number of Rows 1
Number of Positions 14
Type Plug Connection - Ganged
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches
Series COMBICON UMSTBVK
Published 2011
Physical
Material - Insulation Polyamide (PA), Nylon
Weight 39.760008g
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 4 Weeks
