1833894
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Specialized
Description

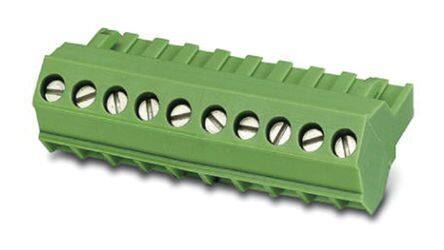

Pluggable Terminal Blocks UMSTBVK 2 5/10-ST-5
PDF
/
Buying Options
Total Price: USD $36.74
Unit Price: USD $36.741779
≥1 USD $36.741779
≥10 USD $34.662057
≥100 USD $32.700057
≥500 USD $30.849103
≥1000 USD $29.102933
Inventory: 6229
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Terminal Width 42.5mm
Width 52.32mm
Length 2.060 52.32mm
Height 43.5102mm
Technical
Wire Cross Section 2.5 mm2
Stripping Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Safety Approval UL
Number of Ways 10
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 30 AWG
Current 12A
Number of Levels 1
Voltage 300V
Housing Color Green
Termination Style Plug Receptacles, Screw
Current Rating 12A
Pitch 5.08mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 320V
Number of Rows 1
Number of Positions 10
Type Plug Connection - Ganged
Connector Type Plug, Screw
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches
Series COMBICON UMSTBVK
Published 2011
Physical
Material - Insulation Polyamide (PA), Nylon
Weight 213.000003g
Housing Material Polyamide
Mounting Type DIN Rail
Mount DIN Rail
Contact Material Tin
Supply Chain
Factory Lead Time 4 Weeks
