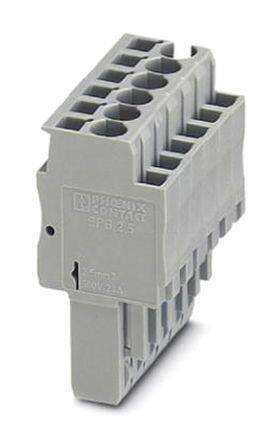

1803044
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Specialized
Description
Pluggable Terminal Blocks MSTBVK 2.5/11- GF-5.08
PDF
/
Inventory: 1184
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Weight 28.349523g
Material - Insulation Polyamide (PA), Nylon
Technical
ECCN Code EAR99
Type Plug Connection - Ganged
Number of Positions 11
Number of Rows 1
Voltage - Rated 320V
Additional Feature PA, 94V-2
HTS Code 8536.69.40.40
Pitch 5.08mm
Current Rating 12A
Termination Style Plug Receptacles, Screw
Housing Color Green
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Number of Ways 11
Safety Approval UL
Wire Gauge or Range - mm2 0.2-2.5mm2
Stripping Length 7mm
Wire Cross Section 2.5 mm2
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Flange
Series COMBICON MSTBVK
Published 2010
Dimensions
Height 29.9974mm
Length 2.646 67.20mm
Terminal Width 27.2mm
Compliance
Material Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
