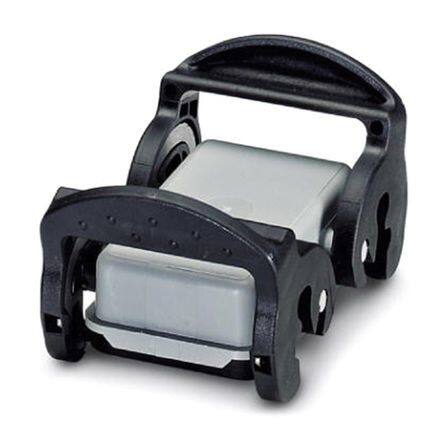

1788224
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Specialized
Description
Pluggable Terminal Blocks UMSTBVK 2 5/13-G-5 0
PDF
/
Inventory: 1139
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-2
Dimensions
Terminal Width 42.5mm
Width 67.56mm
Length 2.660 67.56mm
Height 50.3936mm
Technical
Wire Cross Section 2.5 mm2
Stripping Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Safety Approval UL
Number of Ways 13
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 30 AWG
Current 12A
Number of Levels 1
Max Current Rating 12A
Voltage 300V
Housing Color Green
Number of Contacts 13
Termination Style Plug Receptacles, Screw
Current Rating 12A
Pitch 5.08mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-2
Voltage - Rated 320V
Number of Rows 1
Type Plug Connection - Ganged
Connector Type Plug, Screw
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON UMSTBVK
Published 2011
Physical
Material - Insulation Polyamide (PA), Nylon
Weight 211.000001g
Housing Material Polyamide
Mounting Type DIN Rail
Mount Cable, DIN Rail
Contact Material Tin
Supply Chain
Factory Lead Time 4 Weeks
