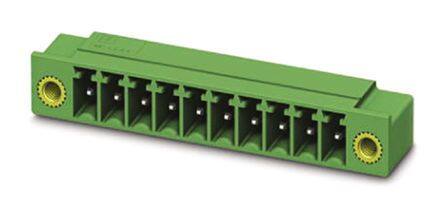

1788075
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Specialized
Description
PA 94V-2 Specialized Terminal Block
PDF
/
Inventory: 1158
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Housing Material Polyamide
Weight 211.000001g
Material - Insulation Polyamide (PA), Nylon
Technical
Published 2011
Series COMBICON UMSTBVK
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug Connection - Ganged
Number of Positions 17
Number of Rows 1
Voltage - Rated 320V
Additional Feature PA, 94V-2
HTS Code 8536.69.40.40
Pitch 5.08mm
Current Rating 12A
Termination Style Plug Receptacles, Screw
Housing Color Green
Voltage 300V
Number of Levels 1
Current 12A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Number of Ways 17
Safety Approval UL
Wire Gauge or Range - mm2 0.2-2.5mm2
Stripping Length 7mm
Wire Cross Section 2.5 mm2
Dimensions
Height 35.9918mm
Length 3.846 97.68mm
Terminal Width 42.5mm
Compliance
Material Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
