1788046
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Specialized
Description

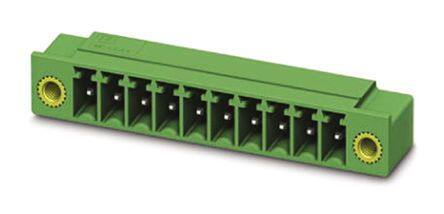

Pluggable Terminal Blocks UMSTBVK 2.5/14-GF-5.
PDF
/
Inventory: 2137
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-2
Dimensions
Terminal Width 42.5mm
Length 3.246 82.44mm
Height 50.3936mm
Technical
Wire Cross Section 2.5 mm2
Stripping Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Safety Approval UL
Number of Ways 14
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 30 AWG
Current 12A
Number of Levels 1
Voltage 300V
Housing Color Green
Termination Style Plug Receptacles, Screw
Current Rating 12A
Pitch 5.08mm
HTS Code 8536.69.40.40
Additional Feature PA, UL 94V-2
Voltage - Rated 320V
Number of Rows 1
Number of Positions 14
Type Plug Connection - Ganged
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON UMSTBVK
Published 2011
Physical
Material - Insulation Polyamide (PA), Nylon
Weight 40.290002g
Housing Material Polyamide
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 4 Weeks
