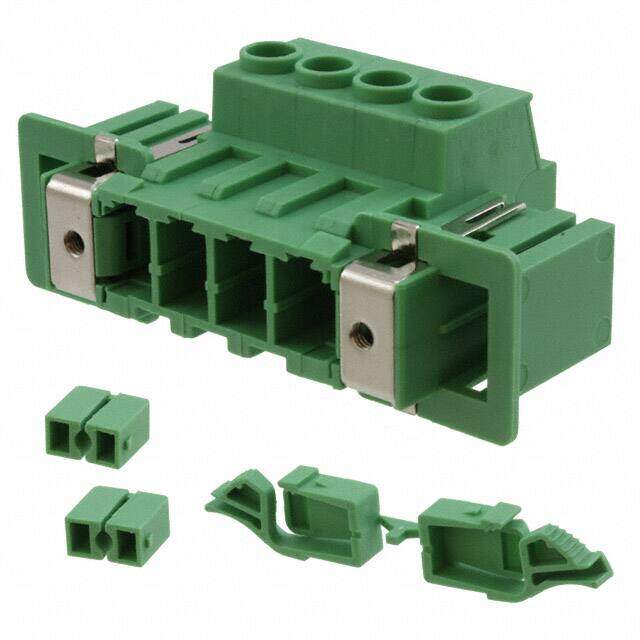

1716632
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Panel Mount
Description
Pluggable Terminal Blocks 4 Pos 7.62mm pitch Feed Through Header
PDF
/
Buying Options
Total Price: USD $8.8
Unit Price: USD $8.8
≥1 USD $8.8
Inventory: 112
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Tin
Housing Material Plastic
Weight 179.999996g
Panel Mount Type 2 Piece, Snap Lock - Front Flange
Technical
Published 2011
Series COMBICON DFK-PC
Feature Threaded Mating Lock, Shield Connection Front Side
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Color Green
Number of Rows 1
Voltage - Rated 500V
Pitch 0.300 7.62mm
Reach Compliance Code not_compliant
Current Rating 41A
Wire Gauge 8-24 AWG
Voltage 600V
Number of Levels 1
Current 41A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 8 AWG
Voltage - UL 600V
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Ways 4
Safety Approval UL
Number of Positions Per Level 4
Front Panel Wire Connection Header, Male Pins
Rear Panel Wire Connection Bolt/Screw Clamp - Wire Entry Parallel to Panel
Dimensions
Height 48.95mm
Length 26.24mm
Width 2.563 65.10mm
Panel Thickness 0.039 ~ 0.118 1.0 ~ 3.0mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
