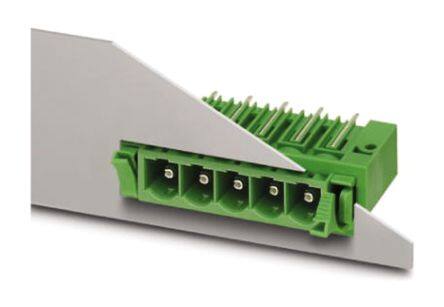

1702125
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Panel Mount
Description
Pluggable Terminal Blocks 5 Pos 10.16mm pitch Feed Through Header
PDF
/
Inventory: 1537
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Silver
Mounting Type BOARD AND PANEL
Housing Material Polyamide
Weight 28.349523g
Panel Mount Type 2 Piece, Snap Lock
Technical
Published 2005
Series COMBICON DFK-PCV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Number of Positions 5
Color Green
Number of Rows 1
Voltage - Rated 1kV
Additional Feature PA, UL 94V-0
Pitch 0.400 10.16mm
Orientation Straight
Depth 46.4mm
Current Rating 76A
Voltage 600V
Max Current Rating 76A
Number of Levels 1
Current 5A
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Ways 5
Safety Approval UL
Front Panel Wire Connection Header, Male Pins
Rear Panel Wire Connection PCB Pins - Straight
Dimensions
Width 2.765 70.24mm
Panel Thickness 0.039 ~ 0.118 1.0 ~ 3.0mm
Compliance
RoHS Status RoHS Compliant
