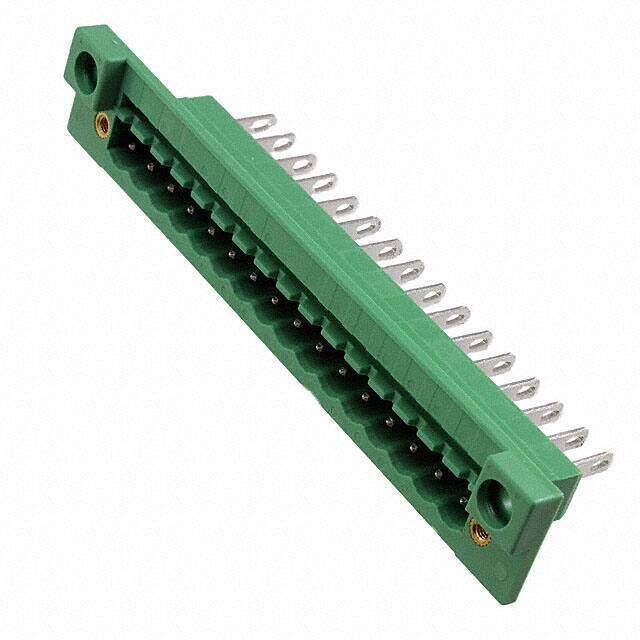

0710316 image
Favorite
0710316 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Panel Mount
Description Pluggable Terminal Blocks 16 Pos 5.08mm pitch Feed Through Header
PDF
/
Buying Options
Total Price: USD $16.11
Unit Price: USD $16.1128
≥1 USD $16.1128
≥10 USD $14.83768
≥100 USD $13.56608
≥500 USD $12.718112
≥1000 USD $11.776054
Inventory: 157
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant

Dimensions

Panel Thickness 0.020 ~ 0.157 0.5 ~ 4.0mm
Width 4.000 101.60mm
Length 17.5mm
Height 17.5mm

Technical

Rear Panel Wire Connection Quick Connect - 0.110 (2.80mm), Solder Eyelet
Front Panel Wire Connection Header, Male Pins
Wire Cross Section 2.5 mm2
Safety Approval UL; CSA
Number of Ways 16
Terminal and Terminal Block Type MODULAR TERMINAL BLOCK
Number of Decks 1
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 12 AWG
Current 10A
Number of Levels 1
Max Current Rating 12A
Voltage 300V
Approval Agency CB, CSA, VDE, cULus
Current Rating 12A
Reach Compliance Code unknown
Orientation Straight
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature POLYAMIDE, 94V-2
Voltage - Rated 320V
Number of Rows 1
Color Green
Number of Positions 16
Connector Type Plug
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON DFK-MSTB

Physical

Panel Mount Type Screw Mount - Front Flange
Weight 15.689987g
Mount Wall
Contact Material Tin

Supply Chain

Factory Lead Time 4 Weeks
