0708250
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Panel Mount
Description

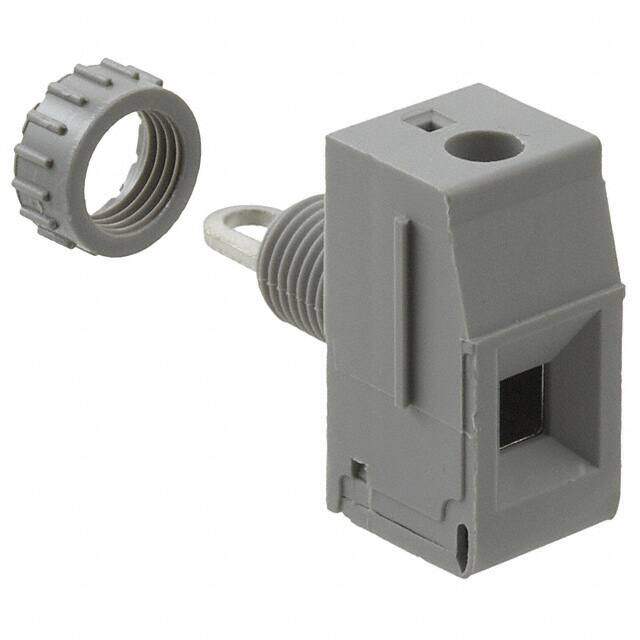

Fixed Terminal Blocks VDFK-4 TERM BLOCK
PDF
/
Buying Options
Total Price: USD $3.42
Unit Price: USD $3.4232
≥1 USD $3.4232
Inventory: 405
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Panel Thickness 0.039 ~ 0.157 1.0 ~ 4.0mm
Width 0.394 10.00mm
Length 25.5mm
Height 20.5mm
Technical
Rear Panel Wire Connection Circular Clamp, Solder Hook
Front Panel Wire Connection Bolt/Screw Clamp - Wire Entry 90° to Panel
Number of Positions Per Level 1
Safety Approval UL; CSA
Number of Ways 6
Positions Per Level 1
Terminal and Terminal Block Type MODULAR TERMINAL BLOCK
Number of Decks 1
Number of Poles 2
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 24 AWG
Current 30A
Max Current Rating 32A
Max Supply Voltage 500V
Voltage 300V
Wire Gauge 10-30 AWG
Housing Color Grey
Approval Agency CB, CSA, KEMA, cULus
Current Rating 32A
Depth 25.5mm
Orientation Right Angle
Pitch 10mm
HTS Code 8536.69.40.40
Voltage - Rated 500V
Number of Rows 1
Color Gray
Connector Type Screw, Socket
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series CLIPLINE VDFK
Packaging Bulk
Physical
Panel Mount Type 2 Piece
Weight 4.080007g
Housing Material Polyamide
Mount Wall
Supply Chain
Factory Lead Time 4 Weeks
