5603257
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description

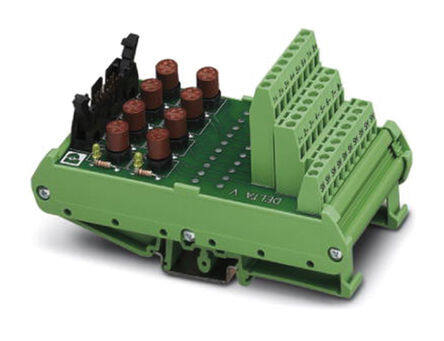

Terminal Block Interface Modules UM-DELTA V/D/ SI/BFI/TP
PDF
/
Buying Options
Total Price: USD $207.82
Unit Price: USD $207.8208
≥1 USD $207.8208
≥10 USD $191.19584
Inventory: 13
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 4.961 126.01mm
Length 2.402 61.00mm
Height 126mm
Technical
Control Side Cable Retainer Latches
Positions / Poles 16
Control Side Connection Rectangular, Male
Process Side Connection Terminal Blocks - Screw Connection
Max Input Voltage 24V
Contact Current Rating 50mA
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge 12-24 AWG
Current Rating 50mA
Depth 71mm
Voltage - Rated DC 24V
Color Green
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Fuses, Knife Disconnect
Series VARIOFACE, UM
Published 2011
Operating Temperature -20°C~50°C
Physical
Package / Case Module
Supply Chain
Factory Lead Time 12 Weeks
