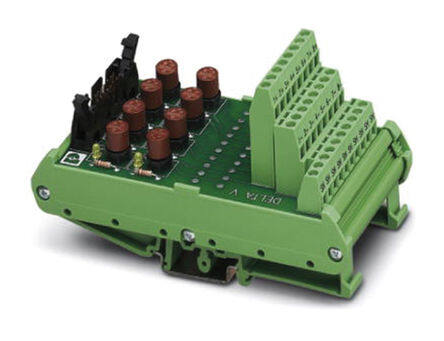

5603256 image
Favorite
5603256 image
Favorite
RoHS
RoHS RoHS compliant
Package Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description INTERFACE MOD HDR 16POS 12-24AWG
PDF
/
Inventory: 1639
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Process Side Connection Terminal Blocks - Screw Connection
Control Side Connection Rectangular, Male
Positions / Poles 16
Control Side Cable Retainer Latches
Operating Temperature -20°C~50°C
Published 2011
Series VARIOFACE, UM
Feature Fuses, Test Connectors
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Voltage - Rated DC 24V
Depth 71mm
Current Rating 50mA
Wire Gauge 12-24 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 12 AWG
Throw Configuration SPDT
Contact Current Rating 50mA
Max Input Voltage 24V

Dimensions

Height 126mm
Length 2.402 61.00mm
Width 4.961 126.01mm

Compliance

RoHS Status RoHS Compliant

Supply Chain

Factory Lead Time 12 Weeks

Physical

Package / Case Module
