2970565
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description

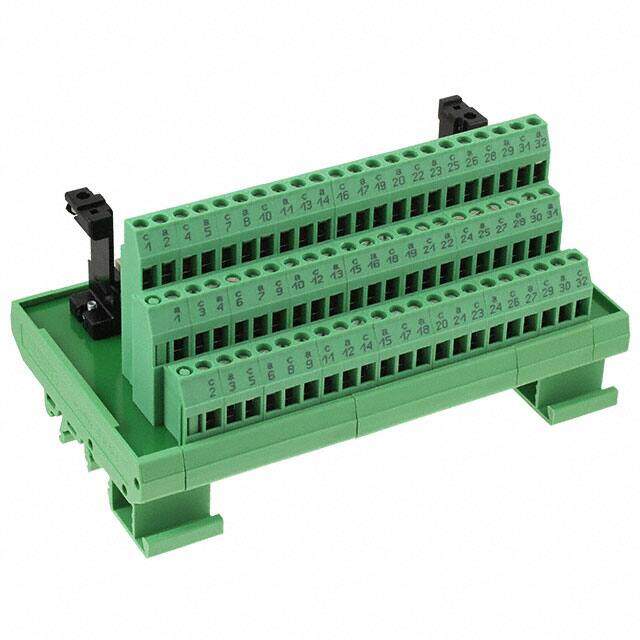

Terminal Block Interface Modules UMKS- C64M-VS
PDF
/
Buying Options
Total Price: USD $229.66
Unit Price: USD $229.6624
≥1 USD $229.6624
Inventory: 99
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount DIN Rail
Package / Case Module
Weight 274.519999g
Technical
Operating Temperature -20°C~50°C
Published 2003
Series VARIOFACE, UMKS
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Number of Positions 64
Color Green
Gender Male
Voltage - Rated 125V
HTS Code 8536.69.40.40
Orientation Straight
Depth 72mm
Reach Compliance Code not_compliant
Current Rating 1A
Wire Gauge 12-24 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 12 AWG
Wire/Cable Gauge 12 AWG
Contact Current Rating 1A
Terminal and Terminal Block Type MODULAR TERMINAL BLOCK
Stripping Length 8mm
Process Side Connection Terminal Blocks - Screw Connection
Control Side Connection Rectangular, Male - DIN 41612 Type C
Control Side Cable Retainer Latches
Dimensions
Height 77mm
Length 5.315 135.00mm
Width 3.031 76.99mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
