2965143
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description

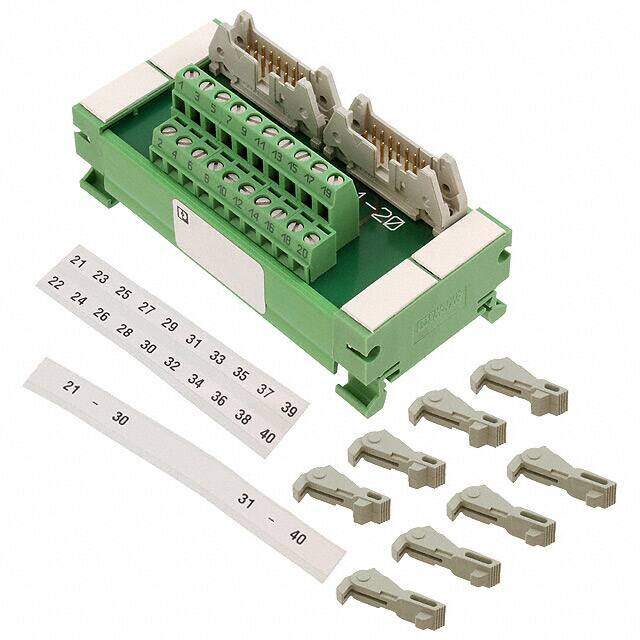

Interface Modules UM 45- 2FLK14/S7
PDF
/
Buying Options
Total Price: USD $154.73
Unit Price: USD $154.7304
≥1 USD $154.7304
≥10 USD $142.35496
≥100 USD $131.523568
Inventory: 68
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 1.772 45.00mm
Length 3.858 97.99mm
Height 45mm
Technical
Current Rating (Per Contact) 1A
Control Side Cable Retainer Latches
Positions / Poles 14
Control Side Connection Rectangular, Male (2)
Process Side Connection Terminal Blocks - Screw Connection
Contact Current Rating 1A
Wire/Cable Gauge 14 AWG
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 26 AWG
Wire Gauge 14-26 AWG
Number of Contacts 28
Voltage - Rated AC 50V
Current Rating 2A
Depth 50mm
Orientation Straight
Voltage - Rated DC 60V
Voltage - Rated 60VDC
Gender Male
Color Green
Min Operating Temperature -20°C
Max Operating Temperature 50°C
Number of Positions 14
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series VARIOFACE, UM
Published 2010
Packaging Bulk
Operating Temperature -20°C~50°C
Physical
Weight 74.280003g
Package / Case Module
Mount DIN Rail
Supply Chain
Factory Lead Time 4 Weeks
