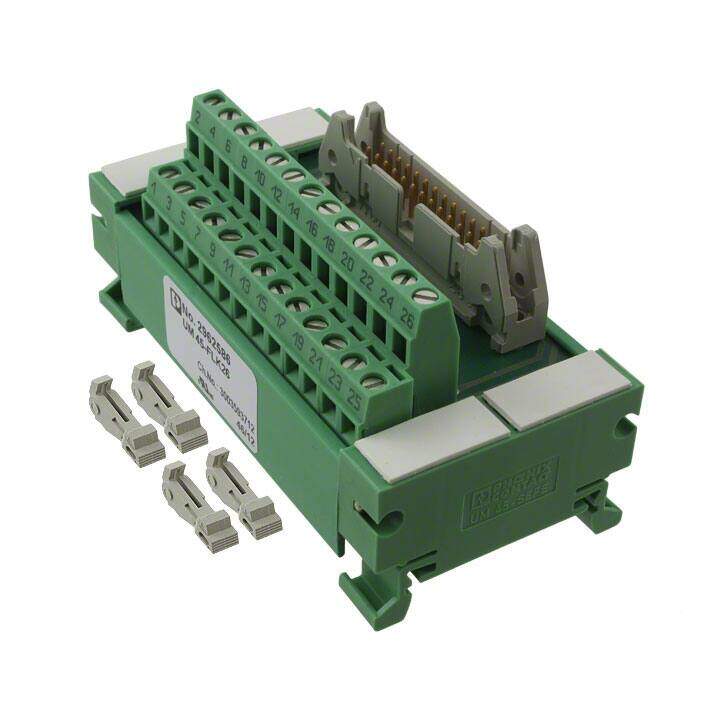

2962586
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description
INTERFACE MOD HDR 26POS 16-26AWG
PDF
/
Buying Options
Total Price: USD $212
Unit Price: USD $212
≥1 USD $212
≥10 USD $200
≥100 USD $188.67925
≥500 USD $177.99929
≥1000 USD $167.92386
≥3000 USD $158.41873
Inventory: 250
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 1.772 45.00mm
Length 3.543 90.00mm
Technical
Current Rating (Per Contact) 1A
Control Side Cable Retainer Latches
Positions / Poles 26
Control Side Connection Rectangular, Male
Process Side Connection Terminal Blocks - Screw Connection
Contact Current Rating 1A
Number of Poles 26
Wire/Cable Gauge 16 AWG
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 26 AWG
Wire Gauge 16-26 AWG
Number of Contacts 26
Current Rating 1A
Depth 45mm
Orientation Straight
Voltage - Rated 25VAC 60VDC
Gender Male
Min Operating Temperature -20°C
Max Operating Temperature 50°C
Number of Positions 26
Connector Type Cable, Flat
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series VARIOFACE, UM
Published 2000
Operating Temperature -20°C~50°C
Physical
Weight 70.170003g
Material Polyamide
Package / Case Module
Mount DIN Rail
Supply Chain
Factory Lead Time 6 Weeks
