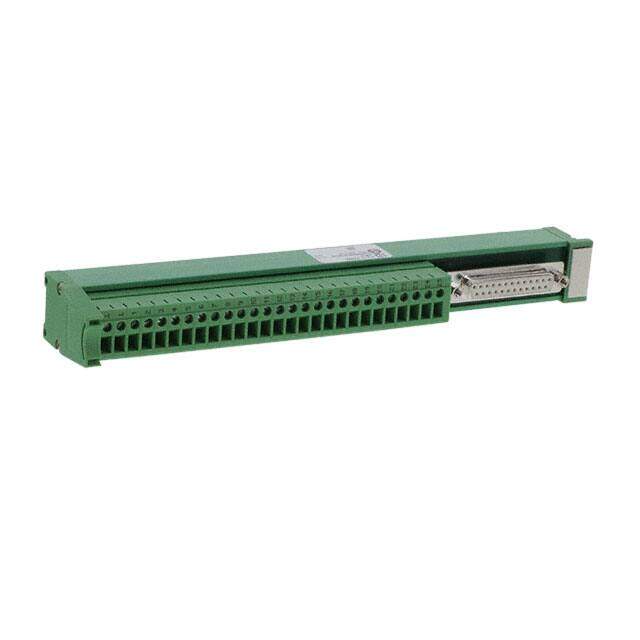

2959609
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description
General Purpose Relays UM 25-D25SUB/B/ FRONT/Q
PDF
/
Inventory: 1271
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 8.543 216.99mm
Length 0.984 24.99mm
Height 217mm
Technical
Control Side Cable Retainer Jackscrew Socket
Positions / Poles 25
Control Side Connection D-Sub, Female
Process Side Connection Terminal Blocks - Screw Connection
Max Input Voltage 125V
Contact Current Rating 2.5A
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge 12-24 AWG
Depth 45mm
Voltage - Rated 125VAC/DC
Termination D-Sub
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series VARIOFACE SLIM-LINE UM
Published 2011
Operating Temperature -10°C~50°C
Physical
Package / Case Module
Mount DIN Rail
Supply Chain
Factory Lead Time 8 Weeks
