2959573
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description

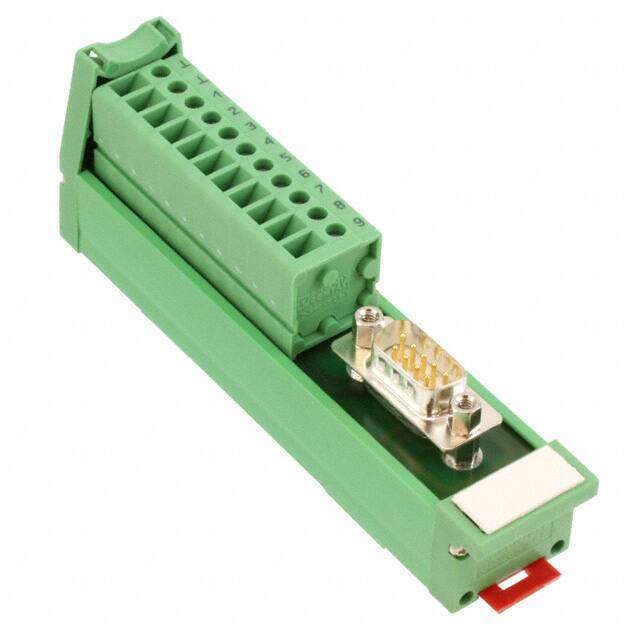

Interface Modules UM 25-D 9SUB/S/ FRONT/Q
PDF
/
Buying Options
Total Price: USD $76.47
Unit Price: USD $76.472
≥1 USD $76.472
Inventory: 92
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount DIN Rail
Package / Case Module
Weight 76.609994g
Technical
Operating Temperature -10°C~50°C
Published 2011
Series VARIOFACE SLIM-LINE UM
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type D-Sub
Number of Positions 9
Max Operating Temperature 50°C
Min Operating Temperature -10°C
Color Green
Gender Male
Voltage - Rated 125V
Orientation Straight
Depth 45mm
Current Rating 2.5A
Voltage - Rated AC 125V
Number of Contacts 9
Wire Gauge 12-24 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 24 AWG
Wire/Cable Gauge 12 AWG
Contact Current Rating 2.5A
Process Side Connection Terminal Blocks - Screw Connection
Control Side Connection D-Sub, Male
Positions / Poles 9
Control Side Cable Retainer Jackscrew Socket
Current Rating (Per Contact) 2.5A
Dimensions
Height 117mm
Length 0.984 24.99mm
Width 4.606 116.99mm
Compliance
RoHS Status RoHS Compliant
