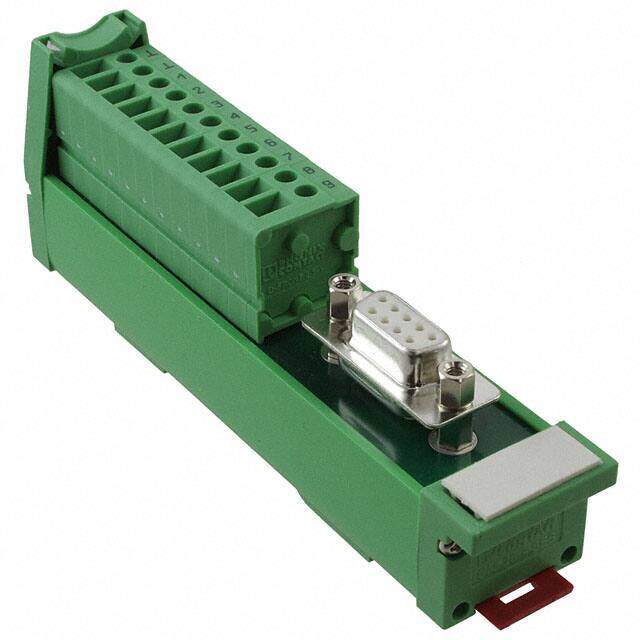

2959560 image
Favorite
2959560 image
Favorite
RoHS
RoHS RoHS compliant
Package Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description INTERFACE MOD DSUB FMALE 9POS
PDF
/
Buying Options
Total Price: USD $76.47
Unit Price: USD $76.472
≥1 USD $76.472
Inventory: 26
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Mount DIN Rail
Package / Case Module
Weight 79.949993g

Technical

Operating Temperature -10°C~50°C
Published 2011
Series VARIOFACE SLIM-LINE UM
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type D-Sub
Number of Positions 9
Max Operating Temperature 50°C
Min Operating Temperature -10°C
Color Green
Gender Female
Voltage - Rated 125V
Orientation Straight
Depth 117mm
Current Rating 2.5A
Voltage - Rated AC 125V
Number of Contacts 9
Wire Gauge 12-24 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 12 AWG
Wire/Cable Gauge 12 AWG
Contact Current Rating 2.5A
Process Side Connection Terminal Blocks - Screw Connection
Control Side Connection D-Sub, Female
Positions / Poles 9
Control Side Cable Retainer Jackscrew Socket
Current Rating (Per Contact) 2.5A

Dimensions

Height 117mm
Length 0.984 24.99mm
Width 4.606 116.99mm

Compliance

RoHS Status RoHS Compliant
