2959557
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description

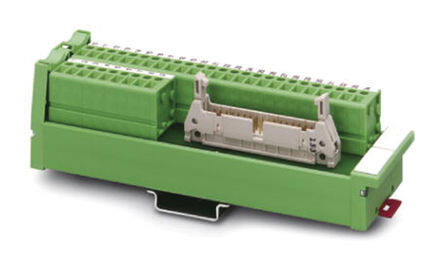

Terminal Block Interface Modules UM 45-FLK 50/FRONT/Q
PDF
/
Inventory: 1620
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 7.756 197.00mm
Length 1.772 45.00mm
Height 197mm
Technical
Control Side Cable Retainer Latches
Positions / Poles 50
Control Side Connection Rectangular, Male
Process Side Connection Terminal Blocks - Screw Connection
Max Input Voltage 60V
Contact Current Rating 1A
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge 12-24 AWG
Voltage - Rated AC 50V
Current Rating 2A
Depth 45mm
Orientation Straight
Voltage - Rated DC 60V
Color Green
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series VARIOFACE SLIM-LINE UM
Published 2010
Operating Temperature -10°C~50°C
Physical
Weight 262.63999g
Package / Case Module
Mount DIN Rail
Supply Chain
Factory Lead Time 10 Weeks
