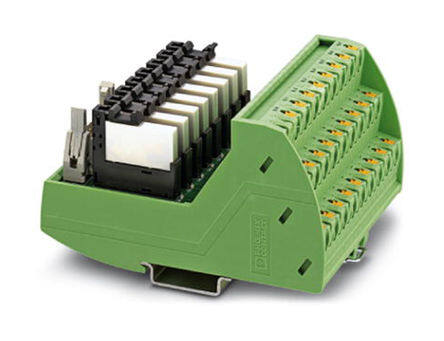

2904576
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description
SPNO Interface Relay Module 14-Pin Male IDC, Push In, 50mA 108132V ac
PDF
/
Inventory: 1169
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Gold, Silver, Tin
Technical
Operating Temperature -20°C~60°C
Published 2015
Series VARIOFACE, VIP
Feature Diode, LED
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Depth 63mm
Wire Gauge 14-26 AWG
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 14 AWG
Turn On Delay Time 6 ms
Min Input Voltage 108V
Max Input Voltage 132V
Input Current 3.5mA
Process Side Connection Terminal Blocks - Spring Connection
Control Side Connection Rectangular, Male
Positions / Poles 14
Control Side Cable Retainer Latches
Dimensions
Height 109.8mm
Length 3.650 92.71mm
Width 4.323 109.80mm
Compliance
RoHS Status RoHS Compliant
