2904278
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description

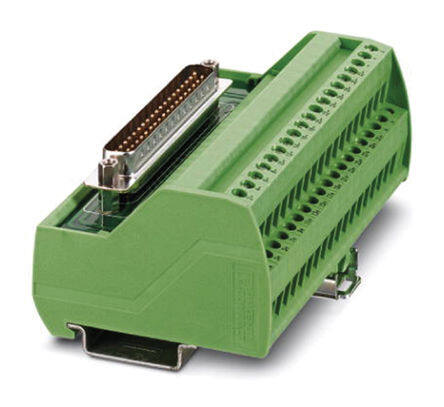

INTERFACE MOD DSUB MALE 37POS
PDF
/
Inventory: 1510
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 2.839 72.11mm
Length 4.047 102.79mm
Height 72.1mm
Technical
Control Side Cable Retainer Jackscrew Socket
Positions / Poles 37
Control Side Connection D-Sub, Male
Process Side Connection Terminal Blocks - Spring Connection
Max Input Voltage 125V
Contact Current Rating 2A
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 26 AWG
Wire Gauge 14-26 AWG
Current Rating 2A
Depth 46.6mm
Voltage - Rated 125VAC/DC
Color Green
Connector Type Push-In
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series VARIOFACE, VIP
Published 2014
Operating Temperature -20°C~50°C
Physical
Package / Case Module
Supply Chain
Factory Lead Time 8 Weeks
