2904274
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description

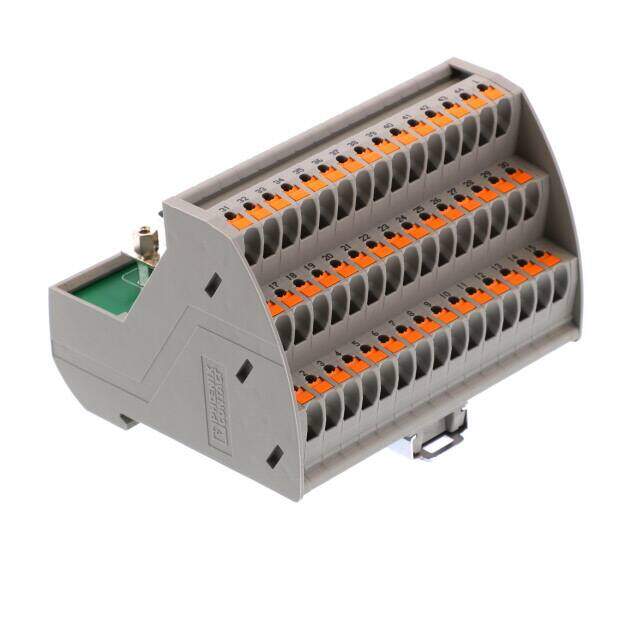

Terminal Block Interface Modules VIP-3/PT/HD44SUB/F
PDF
/
Inventory: 1208
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 2.984 75.79mm
Length 3.248 82.50mm
Height 75.8mm
Technical
Control Side Cable Retainer Jackscrew Socket
Positions / Poles 44
Control Side Connection D-Sub, Female
Process Side Connection Terminal Blocks - Spring Connection
Max Input Voltage 125V
Contact Current Rating 1A
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge 12-24 AWG
Current Rating 1A
Depth 63mm
Voltage - Rated 125VAC/DC
Color Green
Connector Type Push-In
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series VARIOFACE, VIP
Published 2014
Operating Temperature -20°C~50°C
Physical
Package / Case Module
Mount DIN Rail
Supply Chain
Factory Lead Time 8 Weeks
