RoHS
RoHS RoHS compliant
Package Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules

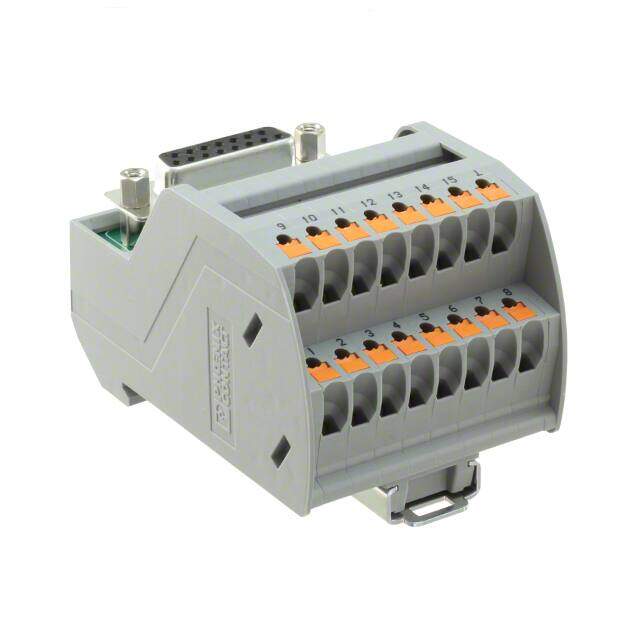

Description Terminal Block Interface Modules VIP-2/PT/ HD15SUB/F
PDF
/
Buying Options
Total Price: USD $79.22
Unit Price: USD $79.2176
≥1 USD $79.2176
≥10 USD $72.87896
≥100 USD $67.333728
≥500 USD $64.165024
Inventory: 54
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 2.839 72.11mm
Length 1.846 46.88mm
Height 72.1mm

Technical

Control Side Cable Retainer Jackscrew Socket
Positions / Poles 15
Control Side Connection D-Sub, Female
Process Side Connection Terminal Blocks - Spring Connection
Max Input Voltage 125V
Contact Current Rating 1A
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge 12-24 AWG
Current Rating 1A
Depth 46.6mm
Voltage - Rated 125VAC/DC
Color Green
Connector Type Push-In
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series VARIOFACE, VIP
Published 2014
Operating Temperature -20°C~50°C

Physical

Package / Case Module
Mount DIN Rail

Supply Chain

Factory Lead Time 8 Weeks
