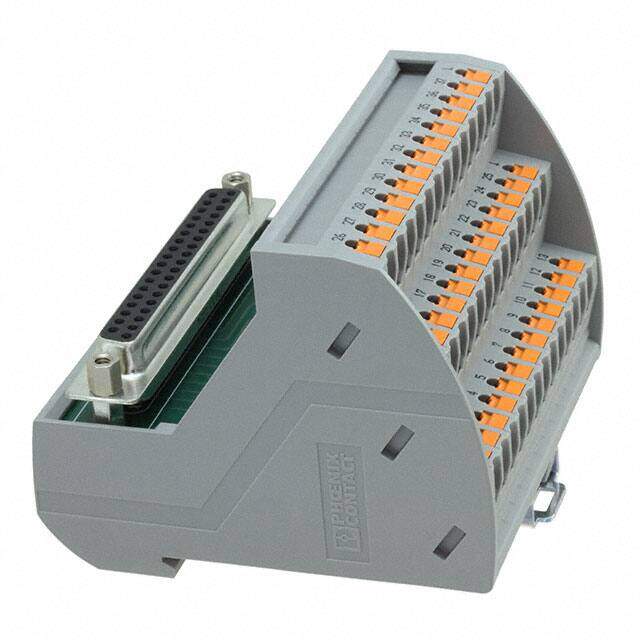

2903784
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description
INTERFACE MOD DSUB FMALE 37POS
PDF
/
Buying Options
Total Price: USD $63.76
Unit Price: USD $63.756
≥1 USD $63.756
Inventory: 53
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 2.984 75.79mm
Length 2.846 72.28mm
Height 72.1mm
Technical
Control Side Cable Retainer Jackscrew Socket
Positions / Poles 37
Control Side Connection D-Sub, Female
Process Side Connection Terminal Blocks - Spring Connection
Max Input Voltage 125V
Contact Current Rating 2A
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 26 AWG
Wire Gauge 14-26 AWG
Current Rating 2A
Depth 63mm
Voltage - Rated 125VAC/DC
Color Green
Connector Type Push-In
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series VARIOFACE, VIP
Published 2014
Operating Temperature -20°C~50°C
Physical
Package / Case Module
Mount DIN Rail
Supply Chain
Factory Lead Time 8 Weeks
