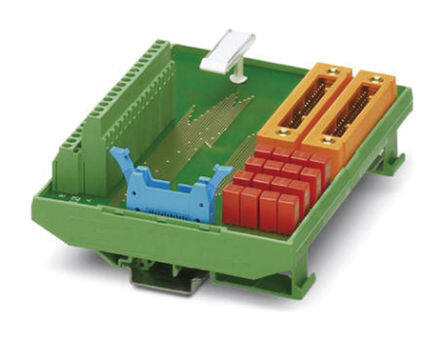

2900680
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description
INTERFACE MOD HDR 40POS 12-24AWG
PDF
/
Inventory: 1157
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Package / Case Module
Technical
Operating Temperature -20°C~70°C
Published 2014
Series VARIOFACE, UM
Feature Label Holder
Part Status Active
Termination Screw
Voltage - Rated 24VDC
Depth 67mm
Wire Gauge 12-24 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 12 AWG
Contact Current Rating 100mA
Max Input Voltage 24V
Process Side Connection Terminal Blocks - Screw Connection
Control Side Connection Rectangular, Male - KS Interface (2)
Positions / Poles 40
Control Side Cable Retainer Jackscrew Socket
Dimensions
Height 112mm
Length 6.378 162.00mm
Width 4.409 111.99mm
Compliance
RoHS Status RoHS Compliant
