2322391
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description

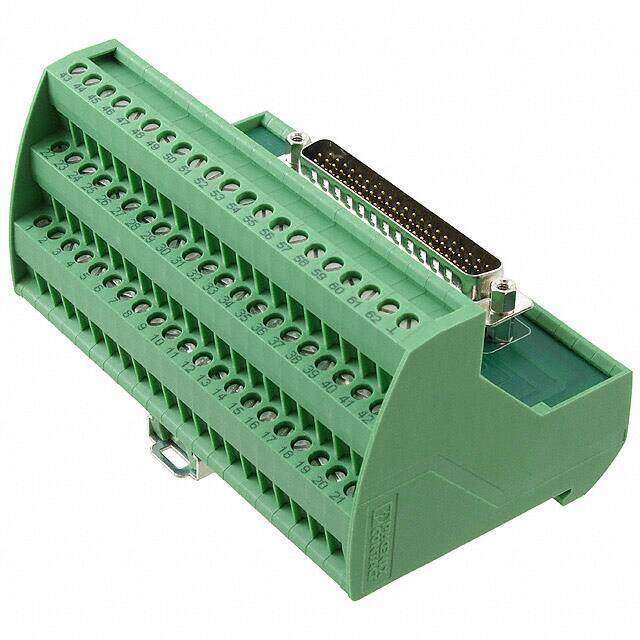

Terminal Block Interface Modules VIP-3/SC/HD62SUB/M
PDF
/
Buying Options
Total Price: USD $127.86
Unit Price: USD $127.8552
≥1 USD $127.8552
≥10 USD $117.62432
≥100 USD $108.675072
Inventory: 95
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 2.717 69.01mm
Length 4.469 113.51mm
Height 62mm
Technical
Current Rating (Per Contact) 1A
Control Side Cable Retainer Jackscrew Socket
Positions / Poles 62
Control Side Connection D-Sub, Male
Process Side Connection Terminal Blocks - Screw Connection
Max Input Voltage 125V
Contact Current Rating 1A
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge 12-24 AWG
Current Rating 1A
Depth 62mm
Voltage - Rated 125V
Color Green
Min Operating Temperature -20°C
Max Operating Temperature 50°C
Number of Positions 62
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series VARIOFACE, VIP
Published 2011
Operating Temperature -20°C~50°C
Physical
Package / Case Module
Supply Chain
Factory Lead Time 5 Weeks
