2322388
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description

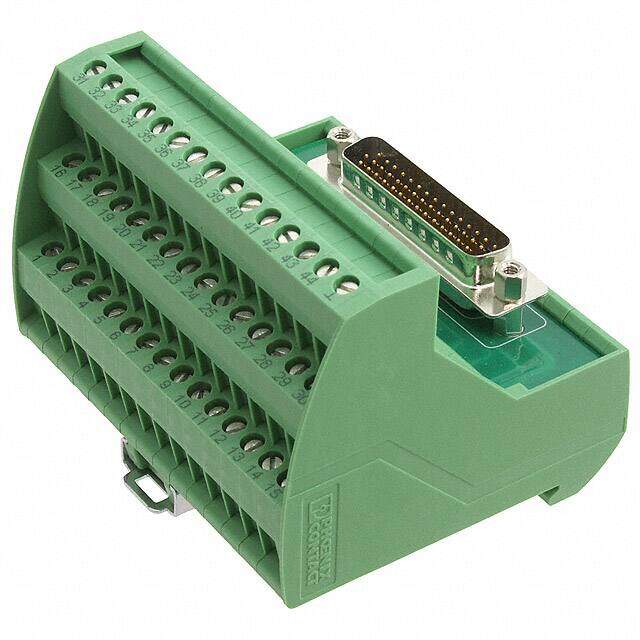

Terminal Block Interface Modules VIP-3/SC/HD44SUB/M
PDF
/
Buying Options
Total Price: USD $102.81
Unit Price: USD $102.8104
≥1 USD $102.8104
≥10 USD $94.58504
≥100 USD $87.3884
≥500 USD $83.275896
Inventory: 64
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 2.717 69.01mm
Length 3.264 82.91mm
Height 62mm
Technical
Current Rating (Per Contact) 1A
Control Side Cable Retainer Jackscrew Socket
Positions / Poles 44
Control Side Connection D-Sub, Male
Process Side Connection Terminal Blocks - Screw Connection
Contact Current Rating 1A
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge 12-24 AWG
Number of Contacts 44
Current Rating 1A
Voltage - Rated 125V
Color Green
Min Operating Temperature -20°C
Max Operating Temperature 50°C
Number of Positions 44
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series VARIOFACE, VIP
Published 2010
Operating Temperature -20°C~50°C
Physical
Package / Case Module
Supply Chain
Factory Lead Time 5 Weeks
