2322375
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description

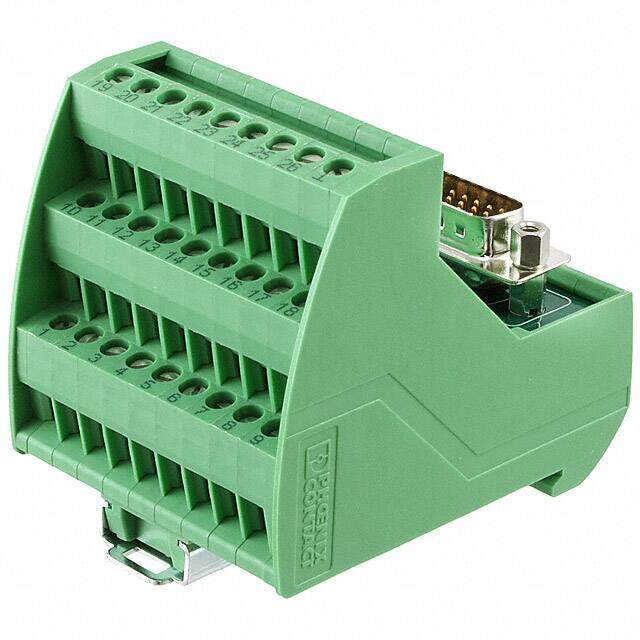

Interface Modules VIP-3/SC/HD26SUB/M
PDF
/
Buying Options
Total Price: USD $87.64
Unit Price: USD $87.6392
≥1 USD $87.6392
≥10 USD $80.63176
≥100 USD $74.496576
≥500 USD $70.990832
Inventory: 43
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 2.717 69.01mm
Length 2.059 52.30mm
Height 62mm
Technical
Current Rating (Per Contact) 1A
Control Side Cable Retainer Jackscrew Socket
Positions / Poles 26
Control Side Connection D-Sub, Male
Process Side Connection Terminal Blocks - Screw Connection
Contact Current Rating 1A
Wire/Cable Gauge 12 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge 12-24 AWG
Number of Contacts 26
Current Rating 1A
Depth 62mm
Orientation Straight
Voltage - Rated 125V
Gender Male
Color Green
Min Operating Temperature -20°C
Max Operating Temperature 50°C
Number of Positions 26
Connector Type D-Sub
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series VARIOFACE, VIP
Published 2010
Operating Temperature -20°C~50°C
Physical
Package / Case Module
Mount DIN Rail
Supply Chain
Factory Lead Time 8 Weeks
