2322326
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description

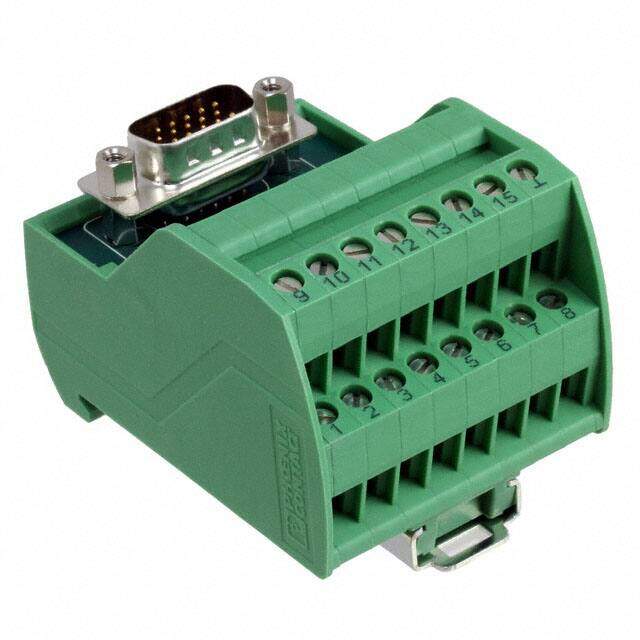

Terminal Block Interface Modules VIP-2/SC/HD15SUB/M
PDF
/
Buying Options
Total Price: USD $73.68
Unit Price: USD $73.6824
≥1 USD $73.6824
≥10 USD $67.78552
≥100 USD $62.628016
≥500 USD $59.680808
Inventory: 67
Minimum: 1
-
+
Technical Details
Technical
Depth 45.1mm
Current Rating 1A
Approval Agency EN, UL
Wire Gauge 12-24 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 12 AWG
Wire/Cable Gauge 12 AWG
Contact Current Rating 1A
Process Side Connection Terminal Blocks - Screw Connection
Control Side Connection D-Sub, Male
Control Side Cable Retainer Jackscrew Socket
Orientation Straight
Voltage - Rated 125V
Gender Male
Color Green
Number of Positions 15
Connector Type D-Sub
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series VARIOFACE, VIP
Published 2010
Operating Temperature -20°C~50°C
Dimensions
Height 45.1mm
Length 1.768 44.91mm
Width 2.579 65.50mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Physical
Package / Case Module
Mount DIN Rail
Supply Chain
Factory Lead Time 8 Weeks
