2322304
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description

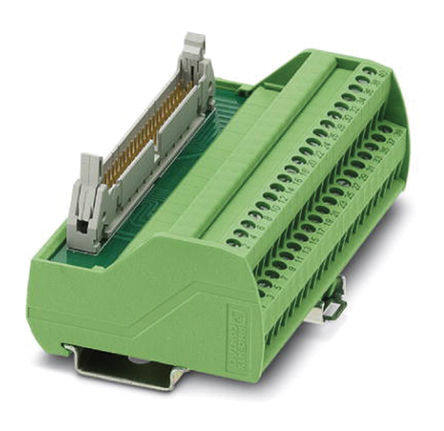

Terminal Block Interface Modules VIP2/FLK50/MODITSX/Q
PDF
/
Inventory: 1592
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 2.579 65.50mm
Length 4.177 106.10mm
Height 65.5mm
Technical
Control Side Cable Retainer Latches
Positions / Poles 50
Control Side Connection Rectangular, Male
Process Side Connection Terminal Blocks - Screw Connection
Max Input Voltage 60V
Contact Current Rating 1A
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge 12-24 AWG
Current Rating 1A
Depth 56mm
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series VARIOFACE, VIP
Published 2011
Operating Temperature -20°C~50°C
Physical
Package / Case Module
Supply Chain
Factory Lead Time 8 Weeks
Alternative Model
