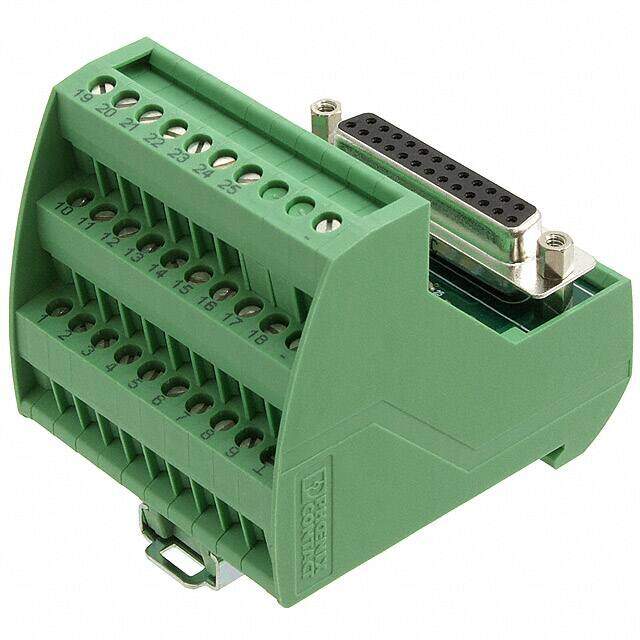

2322210 image
Favorite
2322210 image
Favorite
RoHS
RoHS RoHS compliant
Package Module
Category Connectors, Interconnects / Terminal Blocks - Interface Modules
Description Terminal Block Interface Modules VIP3/SC/D25SUB/F/LED
PDF
/
Buying Options
Total Price: USD $88.38
Unit Price: USD $88.3784
≥1 USD $88.3784
Inventory: 38
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 2.717 69.01mm
Length 2.260 57.40mm
Height 62mm

Technical

Current Rating (Per Contact) 2.5A
Control Side Cable Retainer Jackscrew Socket
Positions / Poles 25
Control Side Connection D-Sub, Female
Process Side Connection Terminal Blocks - Screw Connection
Max Input Voltage 24V
Contact Current Rating 2.5A
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge 12-24 AWG
Current Rating 2.5A
Depth 62mm
Voltage - Rated 24VDC
Color Green
Min Operating Temperature -20°C
Max Operating Temperature 50°C
Number of Positions 25
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature LED
Series VARIOFACE, VIP
Published 2010
Operating Temperature -20°C~50°C

Physical

Package / Case Module
Mount DIN Rail

Supply Chain

Factory Lead Time 8 Weeks
